Information

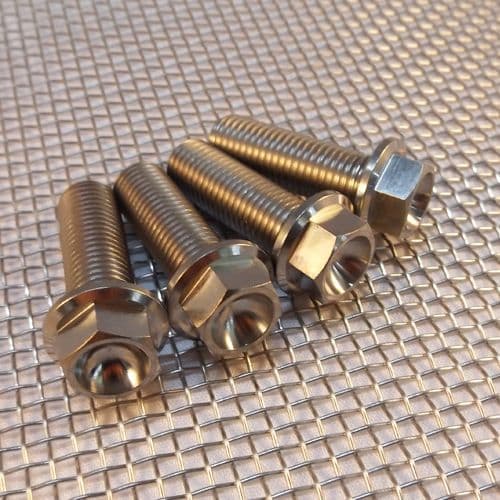

Motorcycle side mount caliper 4 bolt kit M10x30mm
Flange Hexagon Bolt Motorsport Specification
Reduced head height and deep bowl to further reduce weight without compromising strength.
The thread pitch is 1.25mm 28mm thread length
30mm bolt length measured from under head.
Flange 17mm
head height 8mm
head flats 12mm (socket size)
Very high Specification GR5 Grade 5 (Ti-6Al-4V) Motorsport grade Titanium
Common Fitment for
Suzuki GSXR 750W 1992-95
Suzuki GSXR 1100W 1992-95
Suzuki Bandit 1200 2005
Yamaha YZF600 R6 1998-2005
Yamaha R1 1998
